JaycoUpdated a year ago

*Please note that this is not an exhaustive list and only includes models which we have previously encountered. Please use our "Submit Your Rig" form or contact customer service at [email protected] for a personal recommendation for your rig.

As one of the major brands we sell pads for Jayco is probably the least consistent and most unpredictable in terms of jack feet configurations. Therefore, if you own a Jayco it is imperative that you take the time to measure your jack feet and confirm your individual leveling system for your rig.

Class A

Jayco Class A motorhomes aren't quite as straight forward as some other brands, as depending on the leveling system they work with several different lines of our SnapPads. Please look at your rig's control panel to see which leveling system your particular rig uses, the name will be printed there. Also note that many Jayco models can have one of several configurations, even within the same model year. The only way to determine what is on your specific rig is to do a visual inspection and measurement.

LCI/Lippert®

If you have an LCI/Lippert® with 9" round jack feet our XTRA 4-pack pads are the right choice for you!

Some of the Jayco models with LCI/Lippert® leveling that we have encountered that work with our XTRA 4-pack pads includes:

  • Alante 26X, 31P, 31R, 31V models from 2017 and 2018
  • Precept 31UL*, 33U, 35S*, 36T* models from 2016 and 2018

Power Gear®

If you have a Jayco with a Power Gear® leveling system with four 10" round jack feet our PRIME 4-pack pads are the right choice for you!

Here's a list of some of the Jayco models with Power Gear® leveling that we have encountered that work with our PRIME pads:

  • Alante 26AY, 31AL, 31AV, 31L, 31V models from 2016 and 2018
  • Avatar 3860C model from 2003
  • Precept 29UM, 31UL*, 35S*, 35UN, 35UP, 36T* models from 2014 to 2017

Equalizer®

If you have an Equalizer® leveling system with four 10" octagonal jack feet you will need our EQ Octagon package. Some examples of rigs that we've seen with this configuration are:

  • Alante 26X*, 27A, 29F, 29S, 31U, 31V* 2018 to 2020 models
  • Embark 39T2 2019 model
  • Precept 29V, 31UL, 33U, 34G, 36A 2019 and 2020 models
  • Precept Prestige 36B, 36H, 36U 2019 and 2020 models

Class C

Jayco Class C motorhomes also aren't quite as straight forward as some other brands, as depending on the leveling system they work with several different lines of our SnapPads. Please look at your rig's control panel to see which leveling system your particular rig uses, the name will be printed there. Also note that many Jayco models can have one of several configurations, even within the same model year. The only way to determine what is on your specific rig is to do a visual inspection and measurement.

LCI/Lippert®

If you have an LCI/Lippert® with 9" round jack feet our XTRA 4-pack pads are the right choice for you!

Some of the Class C Jayco models with LCI/Lippert® leveling that we have encountered that work with our XTRA 4-pack pads includes:

  • Greyhawk 26Y, 27U, 29MV, 29W, 30DS, 30X, 30Z, 31F, 31FS 2016 to 2020 models
  • Greyhawk Prestige 29MVP, 30XP, 31FSP 2018 and 2019 models
  • Redhawk 22J, 25R 2018 and 2019 models
  • White Hawk Prestige 2018 model

Power Gear®

If you have an older model year Jayco with a Power Gear® leveling system with four 10" round jack feet our PRIME 4-pack pads are the right choice for you!

Here's a list of some of the older Jayco models with Power Gear® leveling that we have encountered that work with our PRIME pads:

  • Greyhawk 2007 model
  • Seneca 34SS, 35GS, 35GSHD, 36FK, 36MS 2006 to 2012 models

Equalizer®

If you have an Equalizer® leveling system with four 10" octagonal jack feet you will need our EQ Octagon package. Some examples of rigs that we've seen with this configuration are:

  • Seneca 36FK, 37FD, 37FS, 37HJ, 37K, 37RB, 37TS 2016 to 2020 models

If you have an Equalizer® leveling system with four 7" square jack feet you will need our EQ Compact package. Some examples of rigs that we've seen with this configuration are:

  • Greyhawk 26Y*, 29KS, 29MV* 2016 and 2017 models
  • Redhawk 22J*, 26XD, 31F 2016 and 2019 models

Bigfoot®

If you have a Jayco with a Quadra Manufacturing Bigfoot® leveling system that has four 6" round jack feet our Mini 6 4-pack of pads are the right choice for you!

So far we have only encountered one Jayco model with this configuration, but there may be more:

  • Melbourne Prestige 2020 model

If you have a Jayco with a Quadra Manufacturing Bigfoot® leveling system that has four 7" square jack feet our BF 7 pads are the right choice for you!

Here's a list of some of the Jayco models that work with our BF 7 pads:

  • Greyhawk 29MV 2014 and 2015 models
  • Melbourne 29D 2014 model
  • Melbourne Prestige 29D 2015 model

If you have a Jayco with a Quadra Manufacturing Bigfoot® leveling system that has four 10" octagonal jack feet our BF 10 pads are the right choice for you!

Here's a list of some of the Jayco models that work with our BF 10 pads:

  • Melbourne 2012 model
  • Seneca 37FS 2014 model

Fifth Wheel

Equalizer®

If you have an Equalizer® leveling system we have pads to fit 10" octagonal and 10" round jack feet as well as 11.5" round jack feet. Please do a quick measurement of one of your front and rear jack feet to confirm their sizes.

If you have a Jayco with an Equalizer® leveling system with four 10" octagonal jack feet and two 11.5" round jack feet our EQ Grand Lux pads are the right choice for you!

Some of the newer Jayco models (2020 to present) with Equalizer® leveling that we have encountered that work with our EQ Grand Lux pads:

  • North Point 310RLTS, 375BHFS, 377RLBH, 383FKWS, 387FBTS, 387RDFS models
  • Pinnacle 33RLTS, 36SSWS, 37MDQS, 38FLWS, 36KPTS, 32RLTS, 36FBTS models
  • Seismic 3512, 4113, 4125, 4212 models

LCI/Lippert®

If you have a Jayco Fifth Wheel with an LCI/Lippert® leveling system that has 9" round jack feet our XTRA pads are the right choice for you! They are available in 2-, 4-, or 6-packs depending on your needs.

Here's a list of some of the Jayco models that work with our XTRA pads:

  • Designer 39RE, 37RS 2016 and 2017 models
  • Eagle 280RSOK, 317RLOK, 321RSTS, 322RLOK, 325BHQS, 330RSTS, 336FBOK, 336HBOK, 355MBQS, 357MDOK 2015 to 2020 models
  • Eagle HT 27.5RLTS, 28.5RSTS, 29.3RKDS, 29.5FBDS, 29.5BHOK, 29.5FBDS, 30.5CKTS, 30.5MBOK, 324BHTS 2015 to 2020 models
  • Eagle Premier 331RKTS, 361REQS 2015 models
  • North Point 315RLTS, 351RSTS, 375BHFS, 377RLBH, 381FLWS, 385THWS, 387RDFS 2016 to 2019 models
  • Pinnacle 32RLTS, 36FBTS, 36KPTS, 36REQS, 36SSWS, 37MDQS, 37RLWS, 38FLSA, 38FLWS 2015 to 2020 models
  • Seismic 4013, 4113, 4114, 4116, 4212 2015 to 2020 models
  • Seismic Wave 355W 2016 model
  • Talon 335T, 345T, 403T 2020 models

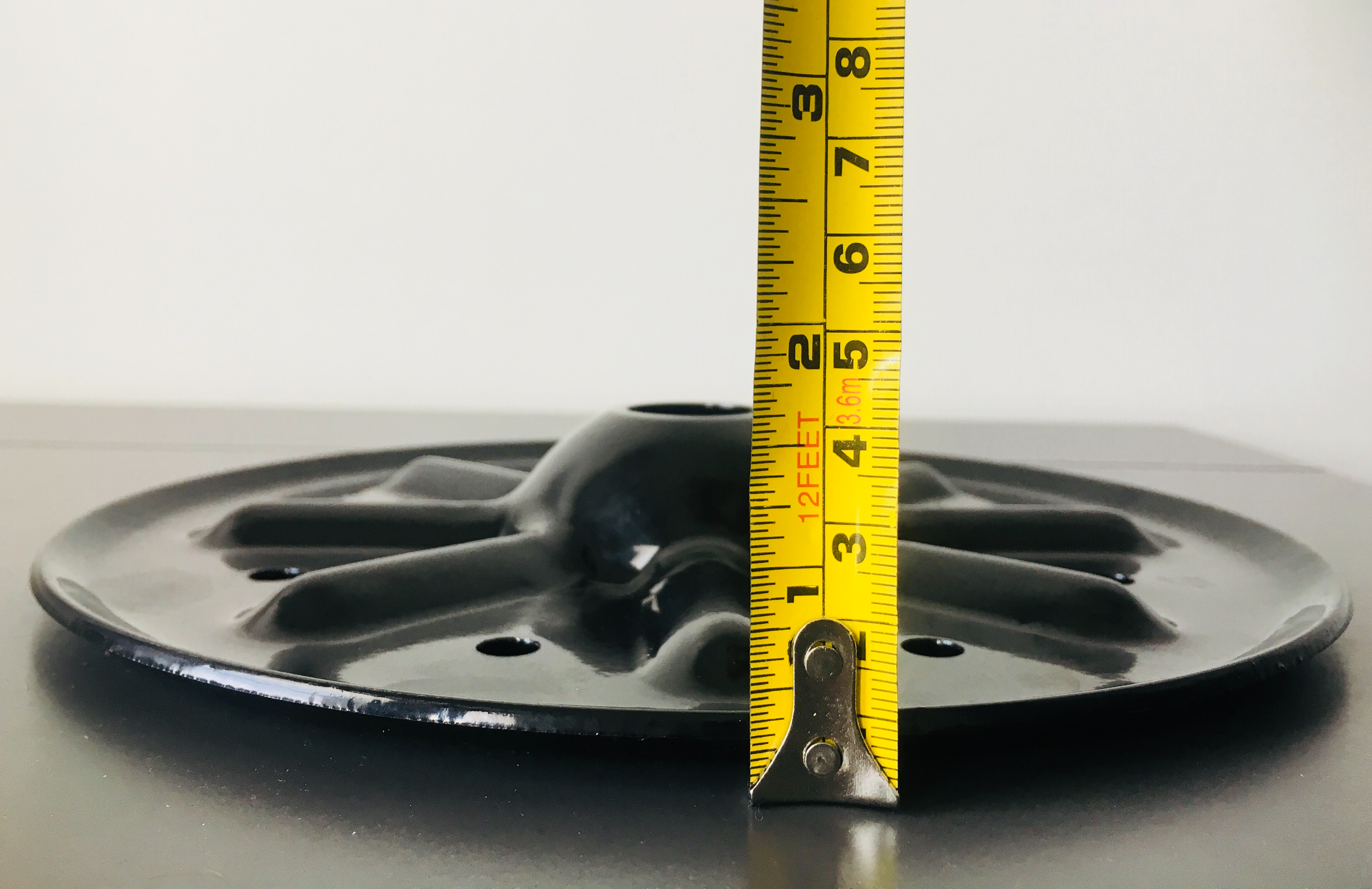

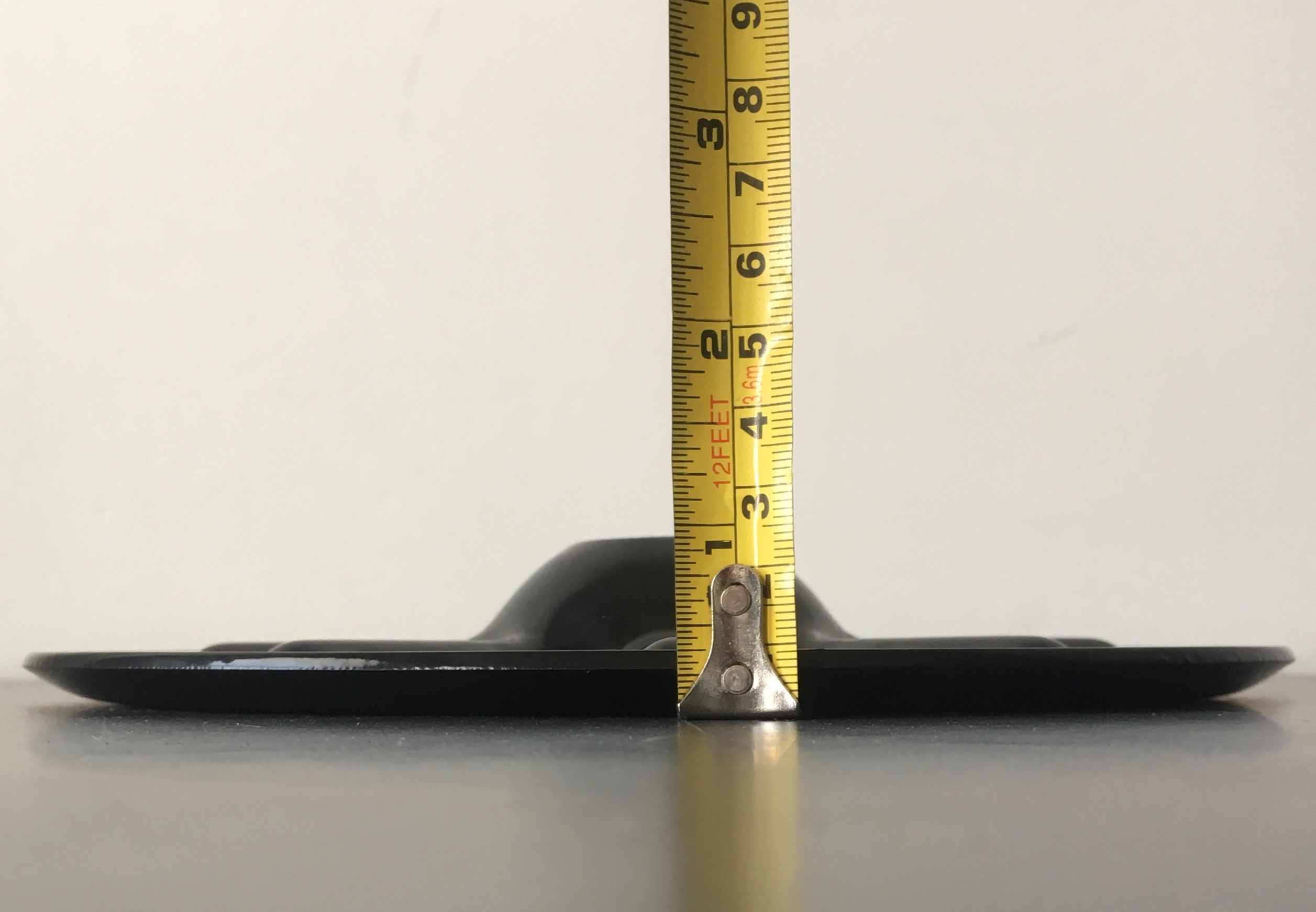

Please note that our XTRA pads are specifically made to fit flat landing feet (please see photos below), they will likely not work if your landing feet are bent or have become "dished." Prior to placing your order please visually inspect all of your landing feet to ensure they are flat. If you are unsure please feel free to send us a photo.



* Please note that these models can have one of several configurations, the only way to determine what is on your specific rig is to do a visual inspection and measurement.

**It is very important on the large coaches that you check for clearance issues under your RV prior to ordering. Please fully retract your rear jacks, put your rig into travel mode and check for clearance issues with tires/cross beams and other undercarriage items prior to ordering. The rear SnapPads for the 11.5" jacks will increase the footprint of the rear jack by 2.25", and we recommend a clearance of at least 2 inches away from undercarriage components for safety.

***Please Note*** Always double check your leveling system and jack feet before ordering SnapPads. Because there is no standard in the industry, we cannot guarantee your rig will be compatible with SnapPads without a visual inspection of your leveling system. Need help? Contact us at [email protected].
